Cleaning Engine Shroud

CAUTION: Compressed air can cause debris to fly a long distance.

• Clear work area of bystanders.
• Wear eye protection when using compressed air for cleaning purposes.
• Reduce compressed air pressure to specification.

  Item	Measurement	Specification
  Air	Pressure	210 kPa (30 psi)

IMPORTANT: An obstructed air intake screen can cause engine damage due to overheating. Keep Air intake screen and other external surfaces of engine, including cooling fins, clean at all times to allow adequate air intake.

CAUTION: Touching hot surfaces can burn skin. The engine, components, and fluids will be hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

1. Park machine safely. (See Parking Safely in the SAFETY Section.)

2. Clean air intake screen and external engine surfaces (see Cleaning Air Intake Screen and Engine Fins in ENGINE Section).

3.
   MXAL42830-UN-09APR13

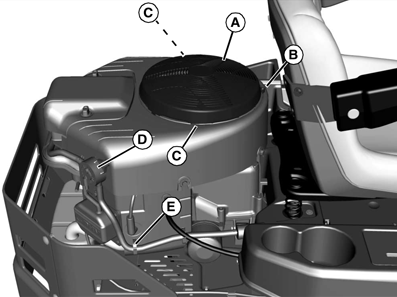

   Locate rotating screen guard (A) at top of engine.

---




4. Remove screw (B) (if equipped) press in tabs (C) and lift off guard (A).

5. Clean guard and flywheel cover of debris.

6. IMPORTANT: Be careful to maintain position of fuel pump assembly (D), clips (E) for fuel line, and any other attached components when removing parts from side of engine.


   MXAL42831-UN-09APR13

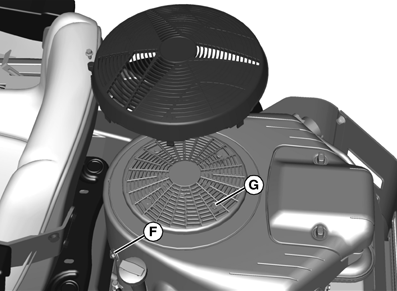

   Remove five bolts (F) and engine shroud.

---




7. Remove four bolts (G) and rotating screen.

8.
   MXAL42832-UN-09APR13

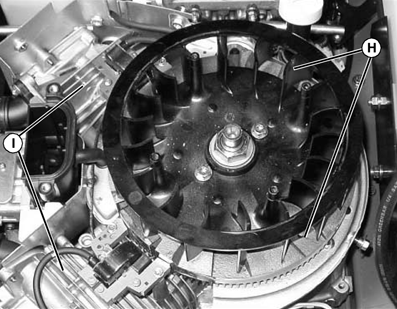

   Clean debris from:
   • Fan areas (H)
   • Cylinder head cooling fins (I)
   • Engine cooling fins
   • Area between engine and frame



---




9. Install rotating screen with four bolts.

10. IMPORTANT: Engine shroud must be assembled so that the slots in the shroud align with the ridge in the air intake and mating surfaces along sides of engine. Failure to assemble correctly will prevent the air filter from sealing and may cause engine damage.

    Install shroud with hardware.
