Removing and Installing Mower Deck Foot Plate

CAUTION: Always operate the mower with the foot plate installed. Operating with the foot plate removed can cause serious injury.


Removing Foot Plate

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

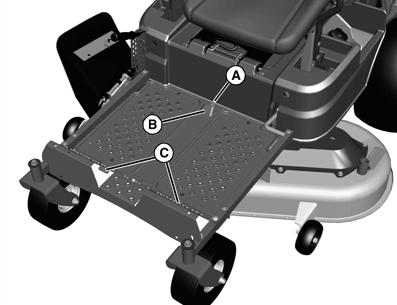

  2. MXAL42845
    MXAL42845-UN-09APR13

    Remove bolt (A).


  3. Rotate foot plate up using finger pull (B).

  4. Remove foot plate.


Installing Foot Plate

  1. Place tabs (C) of foot plate into slots in frame.

  2. Lower foot plate.

  3. Install bolt (A).

MP47322,00F4665-19-20130315
