Removing and Installing the Battery


Removing

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Raise operator seat.

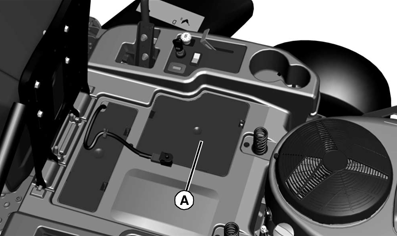

  3. MXAL42870
    MXAL42870-UN-09APR13

    Remove battery compartment cover (A).

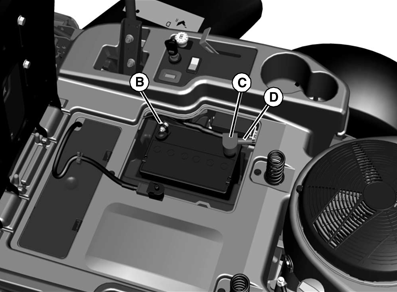

  4. MXAL42871
    MXAL42871-UN-09APR13

    Disconnect negative (-) battery cable (B).


  5. Push red cover (C) away from positive (+) battery terminal and remove cable (D) from battery.

  6. Remove battery.


Installing

  1. Place battery into battery tray as shown.

  2. Connect positive (+) cable to battery first, then negative (-) cable.

  3. Apply general purpose grease or silicone spray to terminals to help prevent corrosion.

  4. Slide red cover over positive battery terminal.

  5. Install battery compartment cover.

  6. Lower operator seat.
