Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See machine Service Label):

1.

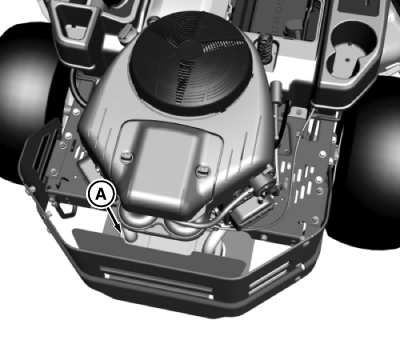

   MXT005361-UN-13JUN13

   Muffler components (A):
   • Exhaust Manifold
   • Muffler Pipes
   • Muffler
   • Muffler Shield

---

2.

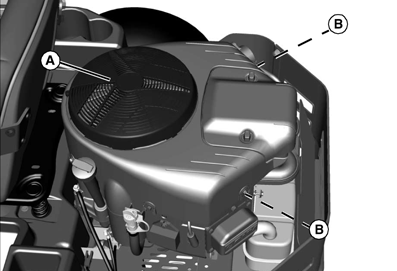

   MXAL42787-UN-09APR13

   Engine intake screens (A), cooling fins (B).

---

3.

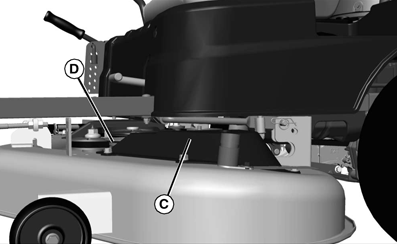

   MXAL42788-UN-09APR13

   Top of mower deck, under shields (C), including spindle and belt area (D).

---

4.

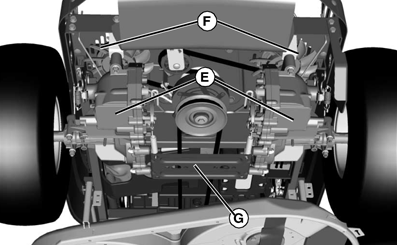

   MXAL42789-UN-09APR13

   On or near transaxles (E) and belt drives and fins (F).

---

5. In and around cross-strap bracket (G).

6.

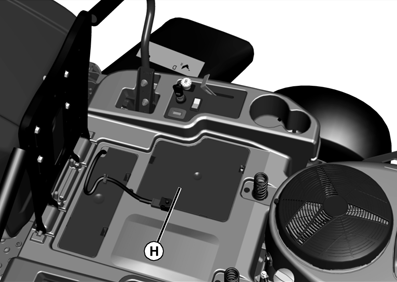

   MXAL42790-UN-09APR13

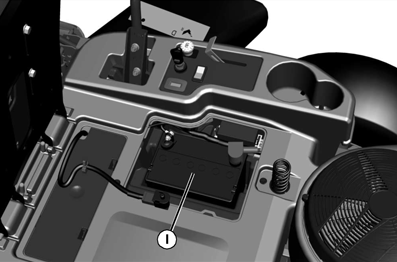

   MXAL42791-UN-09APR13

   Under the seat (H), including the battery (I) and wiring harness.

---
