Checking and Adjusting Neutral Creep


Checking Neutral Creep

Check neutral creep with engine running, motion control levers in the start/shutdown position, park brake off, and machine on level ground.

If the machine creeps forward or reverse while motion control levers are in the start/shutdown position, adjust the motion control lever linkages.


Adjusting Neutral Creep

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Remove style panel for better access to adjustment components (if desired):

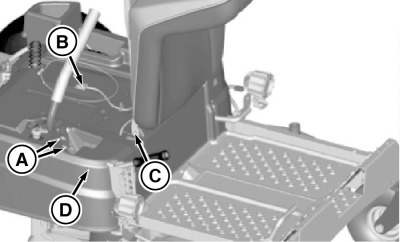

    1. MXT010730
      MXT010730-UN-17APR14

      Remove two bolts (A) to remove steering arm.

    2. Raise rear of seat and disconnect connector (B) from seat switch wiring harness connector.

    3. Remove two L-pins (C) to remove seat.

    4. Remove seven push retainers from style panel (D) and remove style panel.

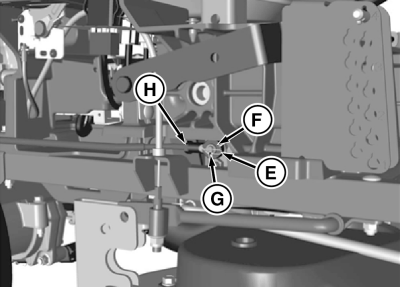

  3. MXT010731
    MXT010731-UN-17APR14

    Right side of machine shown with machine parts removed for a more clear image.

    On linkage side needing adjustment (right side shown), remove spring locking clip (E) and rod end (F) from pivot pin (G). Turn rod end (F) on rod (H) in (clockwise) to decrease forward creep and out (counterclockwise) to decrease reverse creep. Repeat procedure, as necessary, on opposite side. Install rod ends back onto arms and secure with spring locking clips.


  4. Install style panel and push retainers, seat, seat switch and steering arm if previously removed.

TH84124,00000B3-19-20140508
