Removing Mower Deck (48TD)

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Allow engine and muffler to cool completely.

    CAUTION: Rotating blades are dangerous.

    Before adjusting or servicing mower:

    • Disconnect spark plug wire(s) or battery negative (-) cable to prevent engine from starting accidently.
    • Always wear gloves when handling mower blades or working near blades.

  3. Raise mower deck to the transport lock position.

  4. MXAL42850
    MXAL42850-UN-09APR13

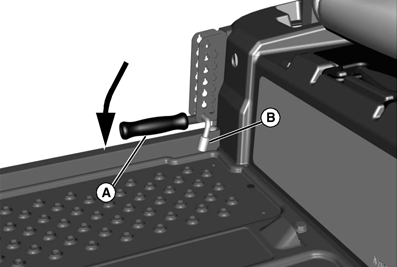

    Remove lock pin, lower handle (A) to the lowest position and install pin (B) just above lever to lock deck in lowered position.


  5. Remove foot plate.

  6. CAUTION: Component is spring-assisted and under tension. Injury can occur if spring-assisted component is released suddenly.

    Disconnect mower drive belt:

    • MXAL42851
      MXAL42851-UN-09APR13

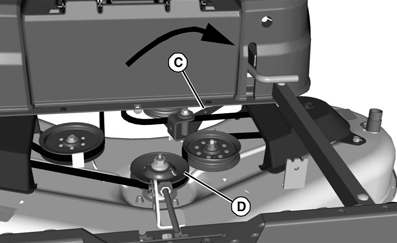

      Install 3/8-inch ratchet onto square hole (C) in tension arm and rotate clockwise to release tension on belt, while removing mower belt from center spindle sheave (D).
    • Remove belt from engine sheave.


  7. MXAL42852
    MXAL42852-UN-09APR13

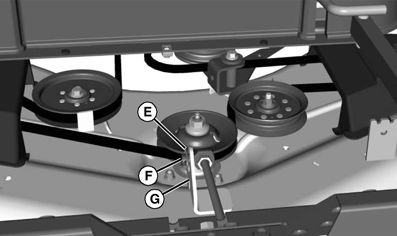

    Remove locking clip (E), and remove stud end (F) from front draft bracket (G).


  8. MXT010736
    MXT010736-UN-21APR14

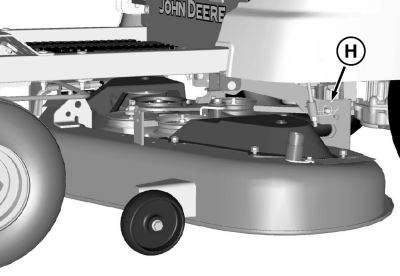

    Remove spring clip (H) and pin from each side of rear mower bracket.


  9. Raise lift linkage to transport position:

    1. Pull pin and raise mower lift lever fully upward.

    2. Install pin just below lift lever to lock into raised position.

  10. Rotate front caster wheels to maximize clearance.

  11. Slide mower out from under the machine.

    • Do not operate the machine without the mower deck: Machine may become unstable without the mower deck attached. Move machine only by hand. (See Moving Machine by Hand in OPERATING section.)
