Installing Mower Deck (48TD)

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Allow engine and muffler to cool completely.

  3. CAUTION: Rotating blades are dangerous.

    Before adjusting or servicing mower:

    • Disconnect spark plug wire(s) or battery negative (-) cable to prevent engine from starting accidently.
    • Always wear gloves when handling mower blades or working near blades.

    Raise mower lift lever fully upward into transport lock position.

  4. Slide mower deck under machine.

  5. MXT010738
    MXT010738-UN-21APR14

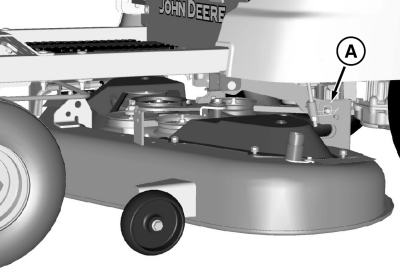

    Lower mower lift lever, and install pin and spring clip (A) onto each side of rear mower bracket.


  6. MXAL42859
    MXAL42859-UN-09APR13

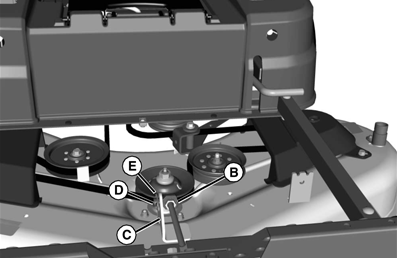

    Install front draft rod (B) onto mower deck bracket (C). Secure stud end (D) with locking clip (E).


  7. CAUTION: Component is spring-assisted and under tension. Injury can occur if spring-assisted component is released suddenly.

    MXAL42860
    MXAL42860-UN-09APR13

    Connect mower drive belt:

    • Install belt onto engine sheave.
    • NOTE: Left and right spindle sheaves are hidden by belt covers. Failure to seat belt properly on sheaves may result in belt damage.

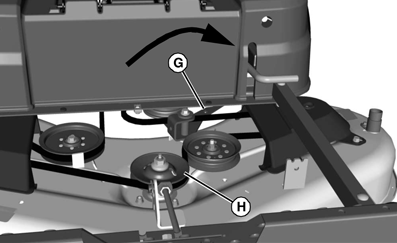

      Install 3/8-inch ratchet onto square hole (G) in tension arm and rotate clockwise to release tension on belt, while installing mower belt onto center spindle sheave (H). Make sure belt is properly seated on all sheaves.


  8. Install foot plate.
