Using Seat Belt

NOTE: Shoulder harness is sensitive. An emergency lock device is built into the belt for your protection. To engage harness, pull harness slowly. Attempting to pull too fast or in a jerking motion will engage the locking mechanism and the harness will not release.

Periodically inspect seat belts for wear or damage. See Inspecting Seat Belt in SERVICE MISCELLANEOUS.

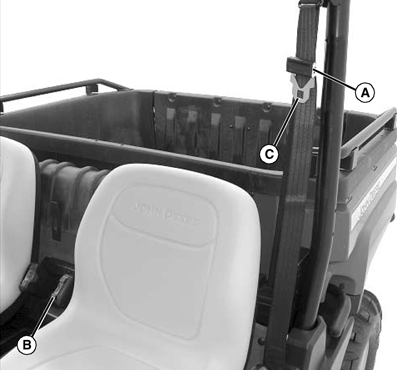

MXAL45654
MXAL45654-UN-09APR13


Fasten Belt

  1. Grasp outer seat belt connector (A) from behind seat, pull out and across body to inner connector (B), at inside of seat.

  2. Adjust outer connector up or down along belt for best fit.

  3. Push outer connector lower half (C) firmly into inner connector until it locks.

  4. Snug the seat belt across the hips, on top of the thighs.


Release Belt

1. Press red button on inner connector to release seat belt.
