Using the Cargo Box

CAUTION: Seating is provided for the operator and one passenger. Do not allow riders in the cargo box or on the tailgate. Extra riders can fall off and be seriously injured or killed.

Raising and Lowering with Manual Lift

CAUTION: Park machine on a level surface and lock park brake before manually raising and securing cargo box in raised position.

A cargo box containing material can be heavy. Empty some or all material until cargo box can safely be raised manually.

1. Park the machine safely. (See Parking Safely in SAFETY.)

2. Empty cargo box by hand.

3.

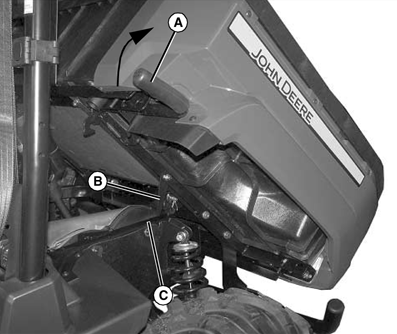

   MXAL45662-UN-09APR13

   Rotate handle (A) upward and raise cargo box. While holding cargo box in position, lower latch support (B) downward and lower cargo box latch support onto frame (C).

---




4. To lower cargo box, raise latch support (B) and slowly push cargo box downward until it latches in fully lowered position.

Locking Box in Raised Position

CAUTION: Cargo box can fall if not secured properly. Remove key from ignition and lower latch support onto frame before doing any service under raised cargo box.

1. Raise the cargo box.

2.

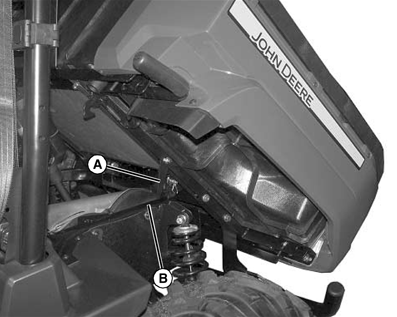

   MXAL45663-UN-09APR13

   Lower latch support (A) downward and lower cargo box latch support onto frame (B).

---




3. Check to be sure box is locked in raised position.

4. To lower cargo box, raise latch support (A) up and slowly push cargo box downward until it latches in fully lowered position.

Operating the Tailgate

CAUTION: Never operate tailgate with one lanyard attached (always use both).

Check condition of lanyards for wear or damage. Replace if cable is kinked or frayed.

IMPORTANT: Do not attempt to tilt or dump cargo box when lanyards are detached. Tailgate damage will result.

Keep lanyards attached when loading and unloading loose materials to avoid jamming material in the gap between the cargo box bed and tailgate.

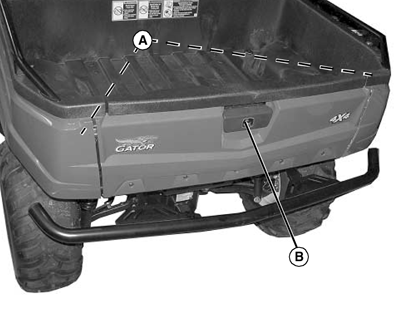

MXAL45664-UN-09APR13

1. Check to be sure lanyards (A) are in place to support lowered tailgate.

2. Disconnect lanyards only if you want to remove tailgate.

3. Pull back on handle (B) to unlock and lower tailgate.

4. Before raising tailgate, check for stones and debris caught in the gap between the tailgate and cargo box floor. To remove debris:

   1. Use latch support to secure the cargo box in raised position.

   2. Rotate the tailgate slightly to free debris, and brush out the gap.

   3. Lower the cargo box.

5. To raise tailgate, slowly push tailgate upward and lock into closed position.

6. Check to be sure tailgate is securely locked.

Using Cargo Box Tie Downs

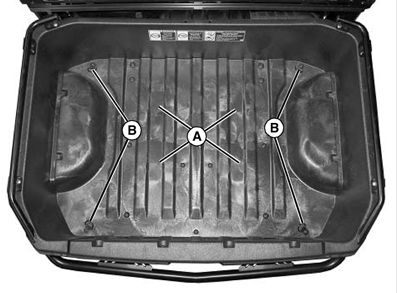

MXAL45665-UN-09APR13

1. Arrange load so the weight is centered over the main cargo area (A).

2. Secure loads to the tie downs (B) in a safe and secure manner.

Removing the Tailgate

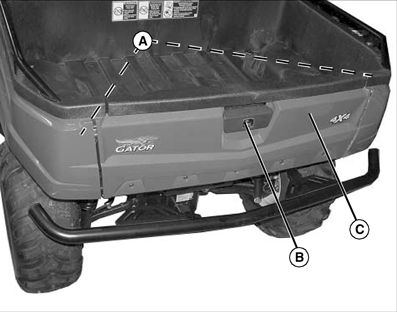

MXAL45666-UN-09APR13

1. Check to be sure lanyards (A) are in place to support lowered tailgate.

2. Pull back on handle (B) to unlock and lower tailgate (C).

3.

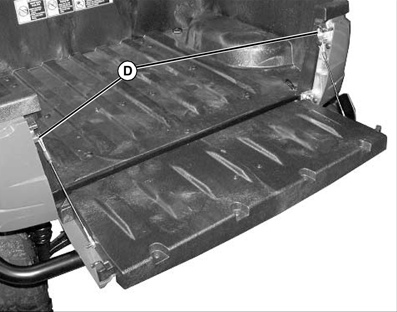

   MXAL45667-UN-09APR13

   Remove top loop (D) on top of lanyards from studs on cargo box side, and lower tailgate downward.

---




4.

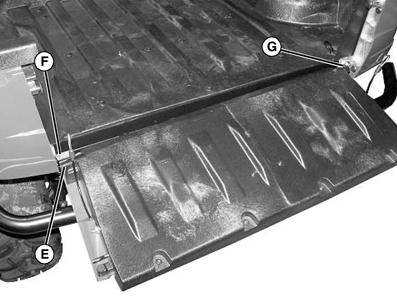

   MXAL45668-UN-09APR13

   Lower tailgate so that slotted opening (E) on tailgate matches pin (F) on side panel. Remove left side of tailgate first and then remove right side (G) and entire tailgate assembly from side panel.

---




5. Install in reverse order of removal.
