Light Kits


Adjusting Lights

1. Adjust light direction:

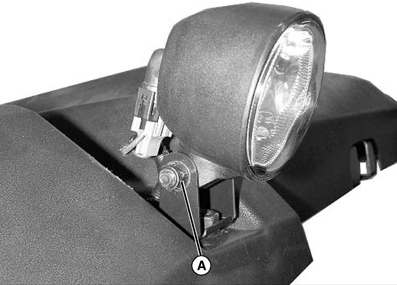

  • MXAL45676
    MXAL45676-UN-09APR13

    Type A - Loosen locknut (A) on carriage bolt and direct light where needed. Tighten locknut to secure in position.

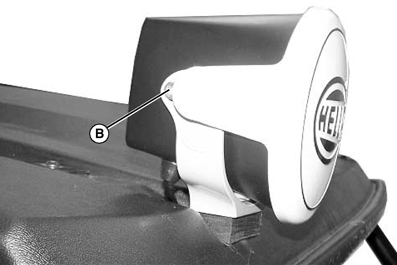

  • MXAL45677
    MXAL45677-UN-09APR13

    Type B - Loosen two hex head bolts (B) on light and direct light where needed. Tighten both hex head bolts to secure in position.

RH75544,0000193-19-20130408
