Sport Bucket Seats

Removing and Installing

1. Tilt seat forward.

2.

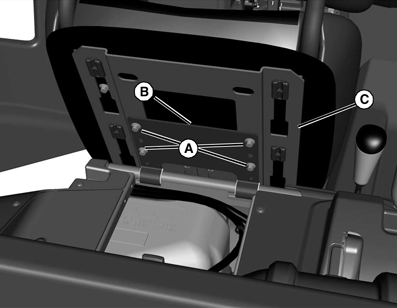

   MXAL45680-UN-09APR13

   Hold seat and remove cap screws (A).

---




3. Position seat pivot bracket (B) against seat mounting bracket (C) and align correct holes.

4. Install original hardware (A) and tighten to specification.

   Item	Measurement	Specification
   Seat Hardware	Torque	12 N·m (106 lb-in.)
