Checking Radiator Hoses and Clamps

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise cargo box.

3. Open hood.

4. NOTE: Visually inspect hoses for cracks and wear. Squeeze hoses to check for deterioration. Hoses should not be hard and brittle, nor soft or swollen.


   MXAL45708-UN-09APR13


   MXAL45709-UN-09APR13

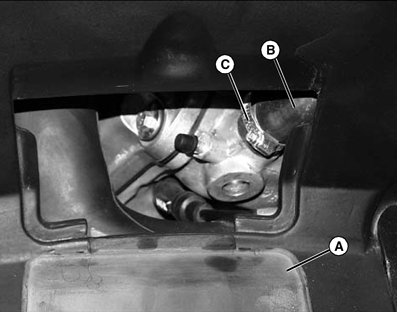

   Remove access panel (A) behind passenger seat.

---




5. Check radiator hoses (B) between intermediate tubes and engine for damage or cracking. Replace if necessary.

6. Check hose clamps (C) and tighten or replace as needed.

7.
   MXAL45710-UN-09APR13

   Vehicle components shown removed for better view.

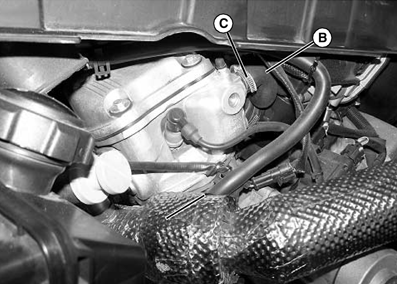

   Check radiator hoses (D) between intermediate tubes and engine and thermostat (E) for damage or cracking. Replace if necessary.

---




8. Check hose clamps (F) and tighten or replace as needed.

9.
   MXAL45711-UN-09APR13

   Vehicle components shown removed for better view.

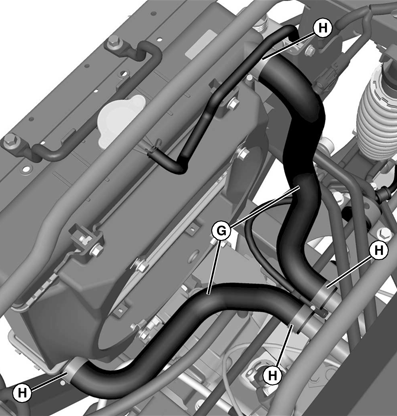

   Check radiator hoses (G) between intermediate tubes and radiator for damage or cracking. Replace if necessary.

---




10. Check hose clamps (H) and tighten or replace as needed.

11. Close hood.

12. Lower cargo box.
