Checking 4WD Front Transmission Oil Level

1. Park the machine safely. (See Parking Safely in SAFETY.)

2. Allow machine to cool down for at least one hour.

3. IMPORTANT: Dirt and debris in oil may cause damage to the transmission. Clean area around opening before removing plug or dipstick.

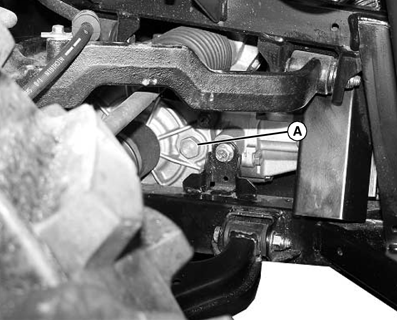

   MXAL45725-UN-09APR13

   Fill plug under left front side.

   Remove fill plug (A) located on left side of 4WD front transmission.

---




4. Oil should be level with the bottom of the fill port. If oil level is low:

   a. Add oil through fill port until level is correct.

   b. Install and tighten fill plug to specification.

   Item	Measurement	Specification
   Front Transmission Fill Plug	Torque	45-54 N·m (33-40 lb-ft)
