Changing Mid and Rear Transmission Oil

Mid Transmission

1. Operate machine to warm transmission oil.

2. Park machine safely on a hard level surface.

3. Lock park brake.

4. Raise and secure cargo box.

5. IMPORTANT: Dirt and debris in oil may cause damage to the transmission. Clean area around opening before removing plug or dipstick.

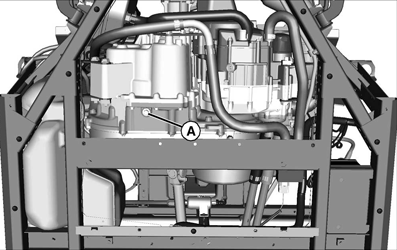

   MXAL45730-UN-09APR13

   View from under machine.

   Position drain pan under transmission drain plug (A).

---




6. Remove drain plug (A). Allow to completely drain.

7. Install and tighten drain plug (A) to specification.

   Item	Measurement	Specification
   Transmission Drain Plug	Torque	30-35 N·m (22-26 lb-ft.)

8.

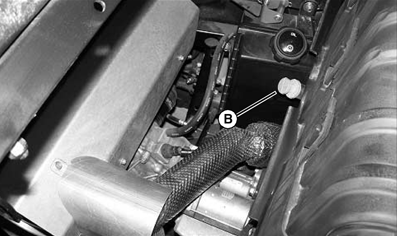

   MXAL45731-UN-09APR13

   Remove dipstick (B) located near oil reservoir. Wipe dipstick clean.

---




9. Add recommended oil.

10.

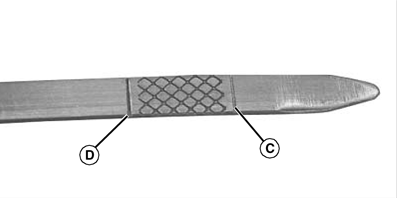

    MXAL45732-UN-09APR13

    Check oil level. Oil level is low if below line (C). Oil level should be full line (D).

---

Rear Transmission

1. Park the machine safely. (See Parking Safely in SAFETY.)

2. IMPORTANT: Dirt and debris in oil may cause damage to the transmission. Clean area around opening before removing plug or dipstick.

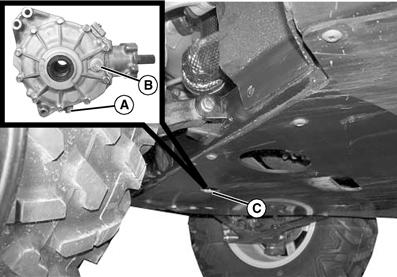

   MXAL45733-UN-09APR13

   Fill plug under right rear side.

   Position drain pan under transmission drain plug (A).

---




3. Remove fill plug (B) located on right side of rear transmission.

4. Remove transmission drain plug (A) and allow oil to drain through opening in frame (C) and into drain pan.

5. Check washer on drain plug. Replace if missing or in poor condition.

6. Install and tighten drain plug to specification after all oil has drained.

   Item	Measurement	Specification
   Transmission Drain Plug	Torque	30-35 N·m (22-26 lb-ft)

7. Add oil until the level is even with the bottom of the fill port.

8. Install and tighten fill plug to specification.

   Item	Measurement	Specification
   Transmission Fill Plug	Torque	45-54 N·m (33-40 lb-ft)

9. Check transmission oil level again after the first several hours of operation.
