Checking Brake Fluid Level

IMPORTANT: Avoid contamination of the brake fluid. Thoroughly clean area around the filler cap before removing. Do not open the brake fluid reservoir cap unless absolutely necessary.

Use extreme care when filling the reservoir. Fluid spilled on painted surfaces can cause damage.

Use only brake fluid from a sealed container.

1. Park the machine safely. (See Parking Safely in SAFETY.)

2.

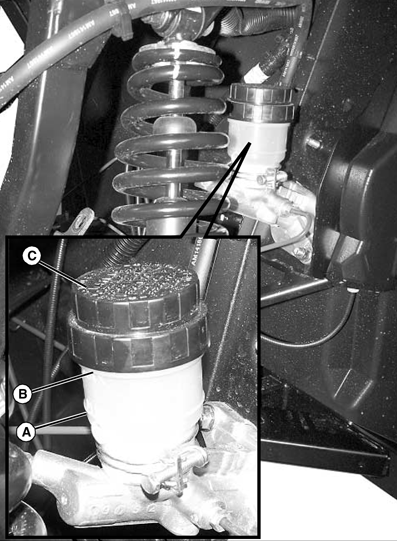

   MXAL45765-UN-09APR13

   Procedure can be done from side or from top. If done from top, open hood and remove tray.

   Visually check brake fluid reservoir. Brake fluid level must be between “MIN” (A) and “MAX” (B) marks. If fluid is low:
   • Carefully clean area around reservoir cap (C).



   NOTE: Do not overfill reservoir. If you do overfill, leakage can occur.

   • Remove reservoir cap and add fluid to the “MAX” mark.



---




3. Install reservoir cap.
