Replacing Headlight Bulb

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. CAUTION: Halogen light bulb contains gas under pressure. The bulb may shatter if the glass is scratched or dropped. Wear eye protection and handle bulb with care when replacing.

    IMPORTANT: Do not touch glass portion of new bulb with bare skin. Contact with oils or dirt will reduce bulb life. Handle bulb by the base or with a clean cloth or gloves.

    MXAL45771
    MXAL45771-UN-09APR13

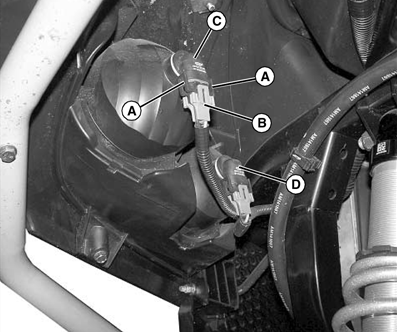

    Pull outward slightly on tabs (A), and disconnect wire connector (B) from bulb socket (C).


  3. Rotate bulb socket (C) 1/8 of a turn counterclockwise and remove socket from housing. Discard the bulb socket assembly.

  4. Repeat removal procedure for fog light bulb socket (D), as needed.

  5. Install the assembly into housing and rotate 1/8 turn to lock in place. Connect wiring connector to new bulb/socket assembly.

  6. Test head lamp function.

RH75544,00001C9-19-20130408
