Checking and Replacing Fuses

IMPORTANT: The electrical system may be damaged if incorrect replacement fuses are used. Replace the bad fuse with a fuse of the same amp rating.

  1. Park the machine safely. (See Parking Safely in SAFETY.)

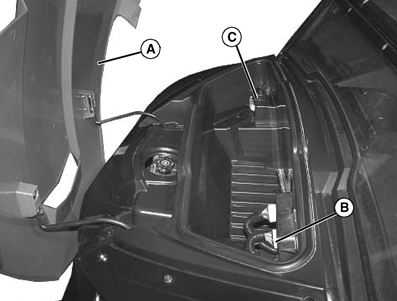

  2. MXAL45772
    MXAL45772-UN-09APR13

    Open hood (A) to access the storage tray.


  3. Locate module box (B) on left side of machine and fuse block (C) on right side of machine.

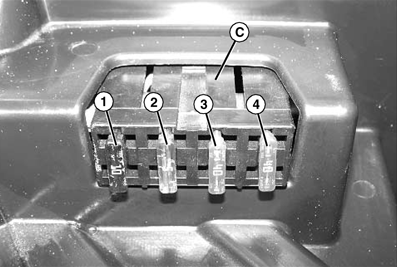

  4. MXAL45773
    MXAL45773-UN-09APR13

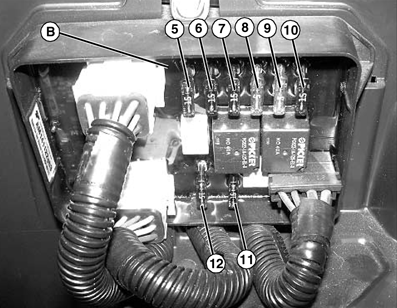

    MXAL45774
    MXAL45774-UN-09APR13

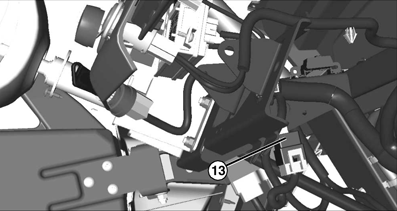

    MXAL45775
    MXAL45775-UN-09APR13

    Dash panel removed for better view.

    Pull fuse from module box (B) on left side of machine or fuse box (C) on right side of machine.


  5. Fuse identification:

    Position

    Circuit

    Fuse Size

    1

    Power Port

    10 amp

    2

    Cluster (Dash Display)

    5 amp

    3

    Front Accessory

    40 amp

    4

    Voltage Regulator

    40 amp

    5

    Fuel Pump

    15 amp

    6

    4 WD / Diff Lock

    15 amp

    7

    Engine Loads

    15 amp

    8

    Starter Solenoid

    5 amp

    9

    ECM

    5 amp

    10

    Radiator Fan

    15 amp

    11

    Headlights

    15 amp

    12

    Key Switch

    15 amp

    13

    Wide-beam, Headlight Cutout Relay

    Part # AM106305

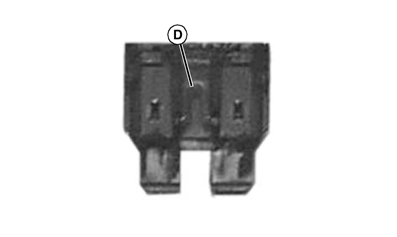

  6. MXAL45776
    MXAL45776-UN-09APR13

    Check visually for broken filament at location (D) in fuse.


  7. Push new fuse of correct amp rating into proper position in fuse block,

  8. Install fuse box cover and close hood.

RH75544,00001CA-19-20130416
