Removing and Installing Seats

1. Park the machine safely. (See Parking Safely in SAFETY.)

Bucket Seat

1. Tilt seat forward.

2.

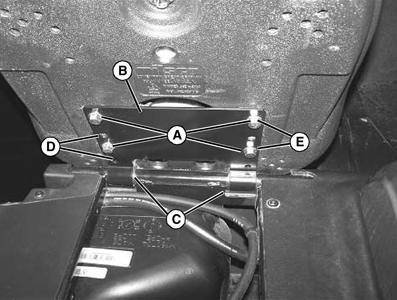

   MXAL45779-UN-09APR13

   Rear position shown.

   Hold seat and remove all screws (A).

---




3. Remove seat and seat bracket (B) from seat bushings (C).

4. To install seat, position seat bushings (C) on support rail so tabs face toward rear of machine.

5. Position seat bracket (B) onto support rail so hinges fit around bushing tabs.

6. Rotate seat bracket upward. Position bottom of seat against bracket and align correct holes with holes in seat.

7. Slide seat to the forward (D) or rearward (E) position.

8. Install original screws (A) and tighten to specification.

   Item	Measurement	Specification
   Seat Screws	Torque	12.2 N·m (108 lb-in.)
