Opening and Closing Hood

CAUTION: Never store flammable, heavy, or loose breakable objects in the storage tray. Always latch hood before operating machine.

IMPORTANT: Do not store items that will not allow the hood to close properly. Properly secure loose or sharp items. These items may damage the storage tray or other items within the tray.

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. MXAL45780
    MXAL45780-UN-09APR13

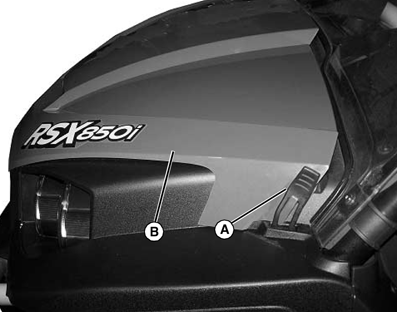

    Release rubber latch (A) attached to each side of machine.


  3. Raise hood (B).

  4. Close hood (B). Secure with two rubber latches (A).
