Removing and Installing Cargo Box

Removing Cargo Box

CAUTION:

• Do not attempt removal of the cargo box without using the latch support.
• Empty all material from the cargo box before removing.

1. Empty the cargo box.

2. Park the machine safely. (See Parking Safely in SAFETY.)

3.

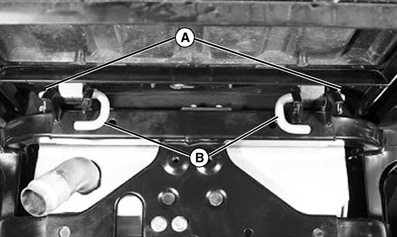

   MXAL45783-UN-09APR13

   Remove spring lock pins (A) from left and right cargo box hinge pins (B).

---




4. Remove hinge pins (B).

5. CAUTION: Machine component or attachment is heavy. Use a safe lifting device or get an assistant to help lift, install or remove component or attachment.

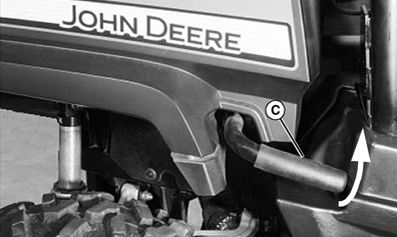

   MXAL45784-UN-09APR13

   Rotate cargo box latch handle (C) upwards to release latches, and lift cargo box from machine.

---

Installing Cargo Box

1. CAUTION: Machine component or attachment is heavy. Use a safe lifting device or get an assistant to help lift, install or remove component or attachment.

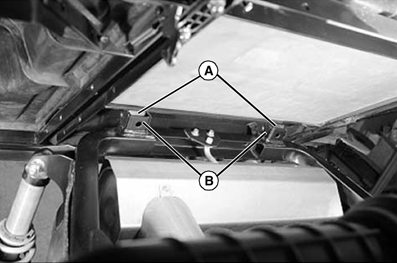

   MXAL45785-UN-09APR13

   Install cargo box to machine, fitting cargo box lugs (A) to frame brackets (B)

---




2. Lower cargo box to latched position.

3.

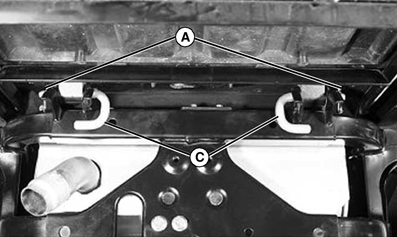

   MXAL45786-UN-09APR13

   Align hinges.Install hinge pins (C) and secure with spring lock pins (D).

---
