Adjusting Cargo Box Latch Brackets

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. Raise and secure cargo box.

  3. MXAL45787
    MXAL45787-UN-09APR13

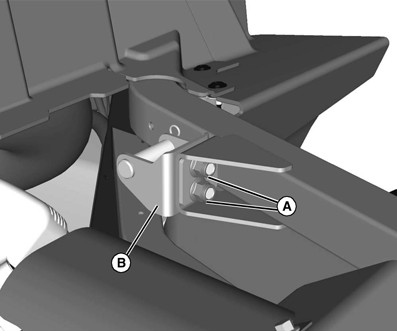

    Loosen nuts (A) on brackets on both sides of machine.


  4. Slide bracket (B) down or up as needed and tighten nuts.

  5. Lower cargo box.

RH75544,00001D3-19-20130408
