Moving Machine by Hand

CAUTION: When the bypass valve is open, the machine has unrestricted motion.

  • Do not open the bypass valve when the machine is stopped on an incline to prevent it from going downhill out of control.

IMPORTANT: If the machine is towed or moved incorrectly transmission damage occurs :

  • Move machine by hand only.
  • Do not use another vehicle to move machine.
  • Do not tow machine.

When you move the machine without starting the engine, use the bypass valve lever:

  1. Stop engine.

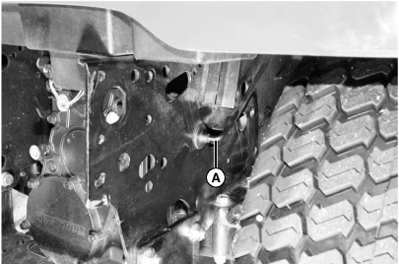

  2. MXAL41846
    MXAL41846-UN-18FEB13

    Pull bypass control lever (A) fully up to open the bypass valve.


  3. Unlock park brake.

  4. Push machine to desired location.

  5. Push down bypass lever.

OUO1023,000006C-19-20190410
