Removing and Installing the Battery


Removing:

  1. Park machine safely. (See Parking Safely in the SAFETY Section.)

  2. Remove hood.

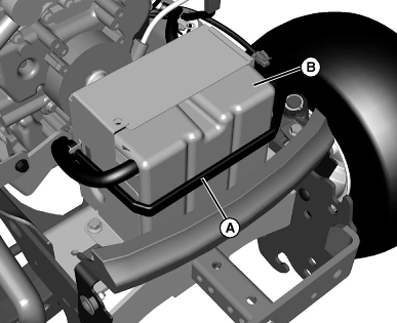

  3. MXAL42751
    MXAL42751-UN-22MAR13

    Remove rubber strap (A) and plastic battery cover (B).

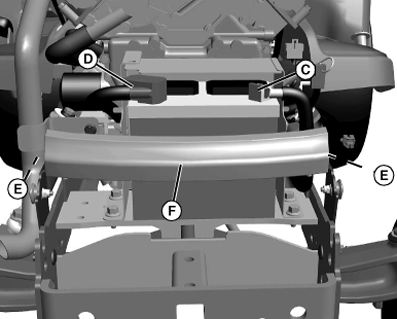

  4. MXAL42752
    MXAL42752-UN-22MAR13

    Disconnect negative (–) battery cable (C).


  5. Push red cover (D) away from positive (+) battery cable and remove cable from battery.

  6. Remove two bolts (E) and front bumper (F).

  7. Remove battery.


Installing:

  1. Place battery on battery tray.

  2. Install plastic bumper with 2 bolts..

  3. Connect positive (+) cable to battery positive (+) terminal first, then negative (-) cable to battery negative (-) terminal.

  4. Apply spray lubricant to terminals to prevent corrosion.

  5. Slide red cover over positive battery cable.

  6. Install plastic battery cover with rubber strap.

  7. Install hood.

OUO1082,000667D-19-20130327
