Using Indicator Lights

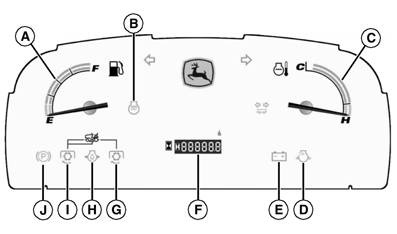

MXAL42686-UN-25MAR13

A - Fuel Gauge - indicates fuel level.

B- Not used on gas models.

C - Coolant Temperature Gauge - indicates temperature of cooling system. If needle on gauge reaches red range, the engine is overheating. If PTO is engaged, it will automatically shut off.

If engine is overheated, disengage PTO, let engine cool at idle speed until needle returns to green range. Shut off engine and clean air intake screens and radiator screen.

D - Not used on gas models.

E - Battery Discharge Indicator Light - will come on when there is no alternator output. If indicator comes on during operation, stop engine and perform appropriate service.

F - Hour Meter - shows number of hours engine has run. Check hour meter daily, and see periodic service required chart located under hood for service requirements.

G and I - PTO Indicator Lights - will come on when mid/front and/or rear PTO is engaged. Light will blink when Reverse Implement Option (RIO) is engaged.

H - Oil Pressure Indicator Light - will come on when engine oil pressure is too low. If indicator comes on during operation, stop engine and perform appropriate service. This is an indication that the engine is low on oil.

J - Park Brake Light - will come on when park brake is set.
