Changing Transaxle Oil and Filter (Except Full-Time Four-Wheel Drive (HFWD) System)

1. Park machine safely. (See Parking Safely in the Safety section.)

2.
   MXAL41883-UN-18FEB13

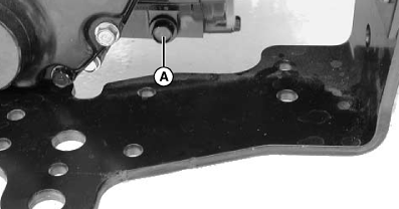

   Place drain pan under the drain plug (A). Remove drain plug and drain oil.

---




3. Install and tighten drain plug.

4.
   MXAL41884-UN-18FEB13

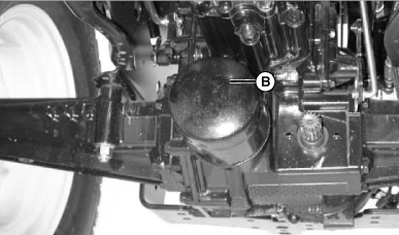

   Put drain pan under the transaxle filter (B).

---




5. To remove the filter turn it counterclockwise with a filter wrench.

6. Put a film of clean transmission oil on gasket of the new filter.

7. Install filter. Turn filter clockwise until gasket contacts the mounting surface. Tighten 2/3 to 1 turn more.

8. Slide seat fully forward.

9. IMPORTANT: Contamination of oil could cause transmission damage or failure. Clean area around dipstick before removing.

   Remove dipstick. Add John Deere Low Viscosity Hy-Gard™ (J20D) transmission oil through dipstick fill opening:

   Item	Measurement	Specification
   All Four-Wheel Steer Transaxle Oil	Capacity	5.7 L (6.0 qt)
   All Two-Wheel Steer Transaxle Oil	Capacity	7.7 L (8.1 qt)

10. Install and tighten the dipstick.

11. Start engine and check for oil leaks around the filter base and drain plug.

12. Return seat to operating position, and drive machine forward and backward a few times.

13. Stop engine. Wait a minimum of three minutes for transaxle to get cold.

14. Check oil level. Add oil as needed.
