Checking Wheel Bolt Tightness

MXAL41902-UN-18FEB13

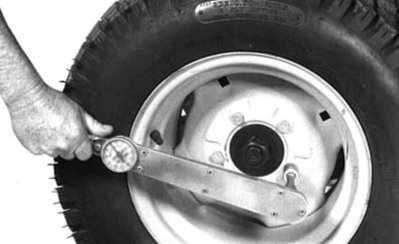

Check wheel bolts often during the first 100 hours of operation. Tighten every other bolt in sequence to specifications.

Item	Measurement	Specification
Front Wheel Cap Screw (two-wheel drive)	Torque	73 N·m (54 lb·ft)
Front Wheel Lugs (four-wheel drive steel)	Torque	88 N·m (65 lb·ft)
Front Wheel Lugs (four-wheel drive aluminum)	Torque	88 N·m (65 lb·ft)
Rear Steel Wheel Lugs	Torque	88 N·m (65 lb·ft)
Rear Aluminum Wheel Lugs	Torque	88 N·m (65 lb·ft)
