Adjusting Seat (Standard)

Tiltable Back

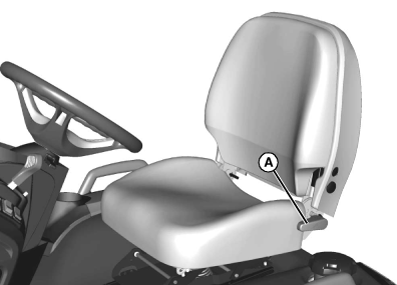

MXAL42651-UN-22MAR13

Adjust back rest angle with lift handle (A).

Adjusting Seat Position with the Slide Adjustment Lever (All Models)

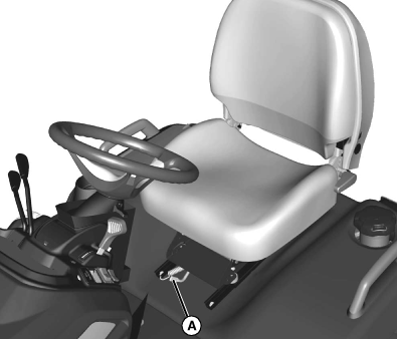

MXAL42652-UN-22MAR13

1. Move seat adjustment lever (A) to the left.

2. Slide seat forward or backward to desired position.

3. Release lever.

4. Check to be sure that seat is locked in position.

Changing Slide Rail Position (All Models)

The slide rails can be secured to the fender deck in two different sets of mounting holes. These mounting holes provide additional front / rear adjustment to extend the range of the basic slide adjustment.

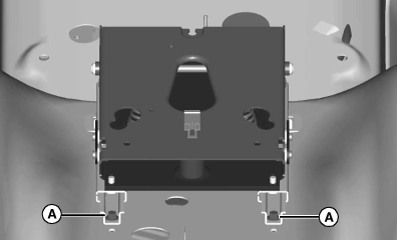

MXAL42653-UN-22MAR13

1. Remove and retain two bolts (A) at the rear of slide rails.

2.
   MXAL42654-UN-22MAR13

   Loosen two bolts (B) at the front of slide rails.

---




3. Slide to front or back as desired.

4. Install two bolts, removed earlier, at the rear of slide rails, then tighten all hardware.

Adjusting Seat Height and Suspension

1.

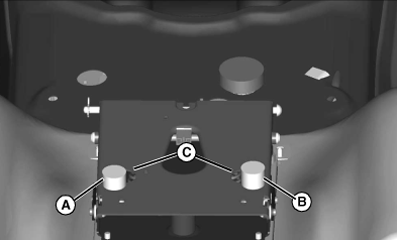

   MXAL42655-UN-22MAR13

   Two different heights shown to illustrate difference. Be sure that both rubber stops are set at the same height.

   Rubber stops (A,B) are reversed to position the seat at two different heights, low (A) and high (B). To change height - Slide stops out of retaining slots into larger holes (C), flip stops, and slide back into retaining slots to secure.

---




2.

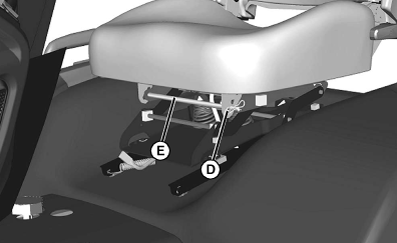

   MXAL42656-UN-22MAR13

   Seat bracket is positioned at three different heights. To adjust - Remove locking clip (D) and seat rod (E). Position seat bracket to align a different mounting hole with the seat base, and install seat rod and locking clip to secure.

---

Changing Seat Suspension Position on Slide Rails

The seat suspension has two sets of holes for mounting onto the slide rails. This provides an additional range of front / rear adjustment to extend the range of the basic slide adjustment and the two slide rail to the fender deck mounting positions.

1. Disconnect seat wire harness and remove seat.

2.

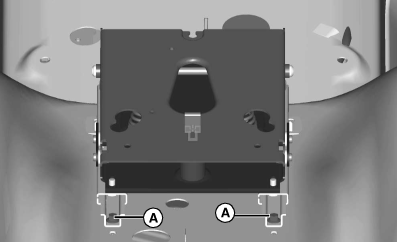

   MXAL42657-UN-22MAR13

   Remove two bolts (A) in the rear of the slide rail.

---




3.

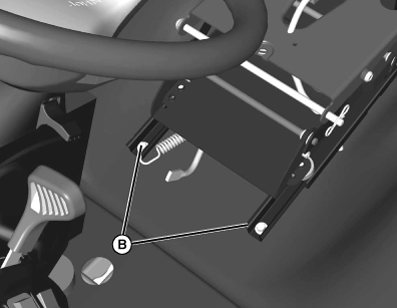

   MXAL42658-UN-22MAR13

   Remove two bolts (B) in the front of the slide rail.

---




4. Remove seat suspension and slide rails from machine.

5.

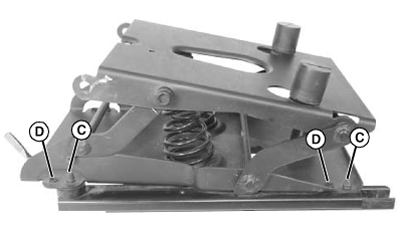

   MXAL42659-UN-22MAR13

   Remove four bolts (C) from the seat suspension. Use the slide adjustment as necessary to access the front and rear bolts from below.

---




6. Move slide rails and install bolts in forward mounting holes (D). Use the slide adjustment as necessary to access the front and rear mounting holes from below.

7. Install seat suspension and slide rails on the machine with four bolts, removed earlier.
