Transmission Oil

NOTE: Machine is filled with John Deere Low Viscosity HY-GARD® (J20D) transmission oil at the factory. DO NOT mix oils.

These machines are equipped with a internal wet disc brake transmission. Use only Low Viscosity HY-GARD (J20D) transmission oil. DO NOT use type “F” automatic transmission fluid.

IMPORTANT: Use John Deere Low Viscosity HY-GARD (J20D) transmission oil to reduce transmission noise and to increase response time for the hydraulics and power steering.

John Deere Low Viscosity HY-GARD (J20D) transmission oil is specially formulated to provide maximum protection against mechanical wear, corrosion, and foaming.

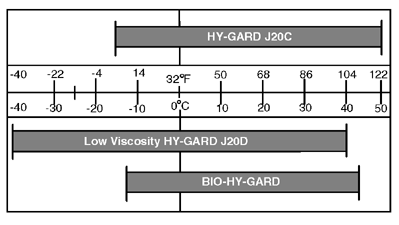

John Deere J20C HY-GARD™ transmission and hydraulic oil may be used, if within the specified temperature range.

LVAL22420-UN-01MAY12
