Install Discharge Chute

CAUTION: Avoid injury! Components are installed under spring tension. Wear eye protection and use proper tools when installing and removing components with spring tension.

1.

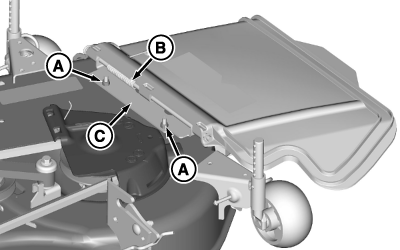

   MXT013565-UN-27FEB15

   Remove two nuts (A) from retained bolts on mower deck.

---




2. NOTE: The spring (B) must be in tension after installation.

   Install hinge bracket (C) on chute assembly to mower deck. Fasten to mower deck with two nuts removed earlier.
