Replacing Mower Wheels

  1. Park machine on a level surface, not on a slope.

  2. Disengage mower blades.

  3. Fully raise the mower.

  4. Lock the park brake.

  5. Stop the engine.

  6. Remove the key.

  7. Wait for engine and all moving parts to stop before you leave the operators seat.

  8. IMPORTANT: Avoid damage! Do not overtighten wheel hardware.

    Block the mower.

  9. MXT013586
    MXT013586-UN-02MAR15

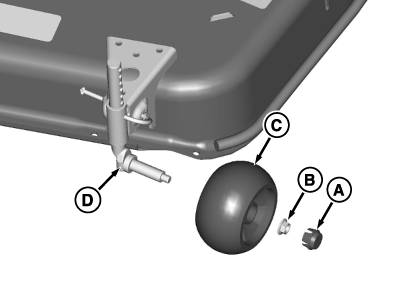

    Remove cap (A), nut (B), and wheel (C) from gage wheel bracket (D) as shown.


  10. Install new wheel and secure with nut.

OUMX068,0000B59-19-20150302
