Lubricating Mower

Driveline

MXT009288-UN-21SEP13

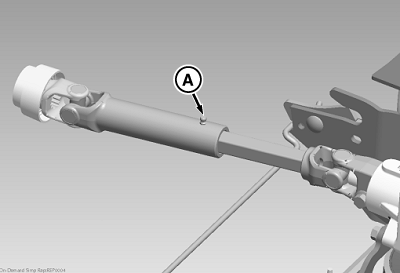

Picture Note: Standard PTO shaft shown, auto connect drive shaft lubrication is at the same location.

1. Lubricate grease fitting (A) with recommended grease.

Spindles

1.
   MXT013579-UN-02MAR15

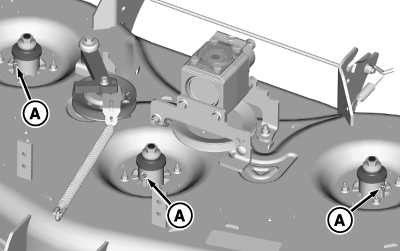

   Picture Note: Sheaves removed for clarity.

   Lubricate grease fittings (A) with recommended grease.

---




2. Install plugs.
