Starting When Engine Runs Out of Fuel


(X710)

  1. Add fuel.

  2. Turn key to on position for 15 seconds to operate pump.

  3. Turn key to start position.

    • Crank engine.
    • If engine does not start in 5 seconds, turn key to stop position and wait 10 seconds.
    • Crank engine again for 5 seconds.
    • Repeat this procedure as necessary.


(X730, X734, X738, X739)

  1. IMPORTANT: If engine runs out of fuel, relieve fuel system pressure before starting. Engine may not start if run out of fuel.

    Add fuel.

  2. MXAL42691
    MXAL42691-UN-22MAR13

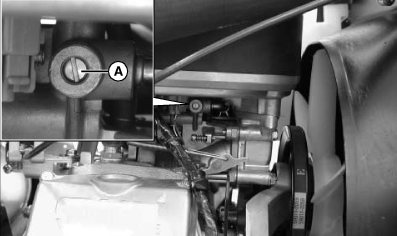

    Loosen fuel pressure relief screw (A) on left side of machine two turns to relieve pressure. Do not remove screw.


  3. Cycle the key back and forth between Stop (Off) and Run positions several times. Do not turn key to Start (Crank) position.

  4. Tighten pressure relief screw.

  5. Start engine.

OUO2004,00002BD-19-20130715
