Operator Station Controls

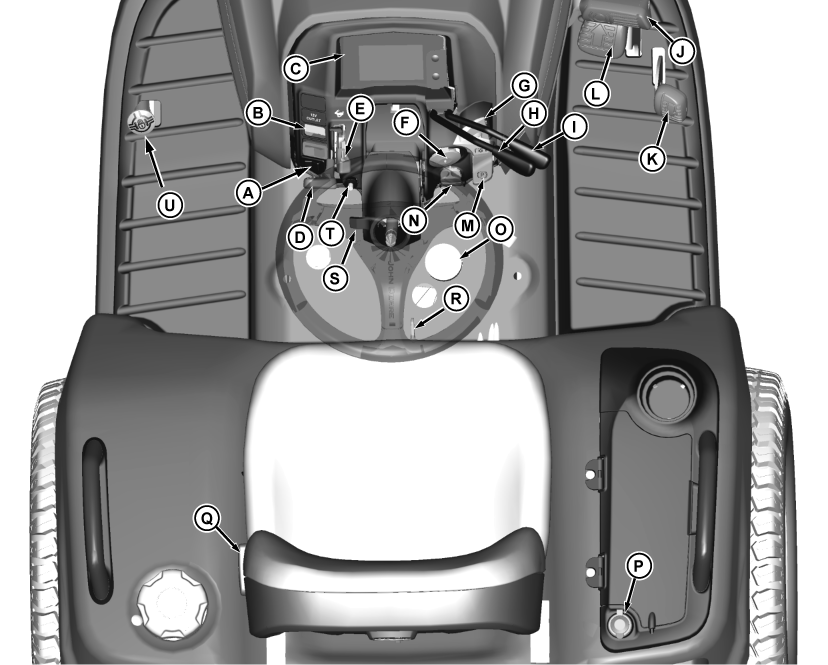

MXT013431-UN-15JUN15

A - Light Switch

B - 12V Accessory Outlet Switch

C - Instrument Cluster

D - Throttle Lever

E - Choke Lever (X710 only)

F - Key Switch

G - PTO/RIO Switch

H - Hydraulic Control Lever, Upper

I - Hydraulic Control Lever, Lower

J - Brake Pedal

K - Reverse Control Pedal

L - Forward Control Pedal

M - Park Brake Lock

N - Cruise Control Switch

O - Mower Height Control Knob

P - 12V Accessory Outlet

Q - Seat back Recline Handle

R - Seat Slide Lever

S - Tilt Steering Lever

T - RIO Switch

U - Traction Assist Pedal
