Installing Attachment to Front Hitch

  1. Avoid damage! To prevent damage to drive shaft:

    • Do not angle snow removal attachment.
    • Put attachment drives shaft on support rod before driving machine forward.

    Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Avoid damage! Use locking pin to prevent front hitch from angling when using attachment.

    MXT013814
    MXT013814-UN-24MAR15

    Insert locking pin assembly (A) in front hole on front hitch and fasten with spring locking pin.

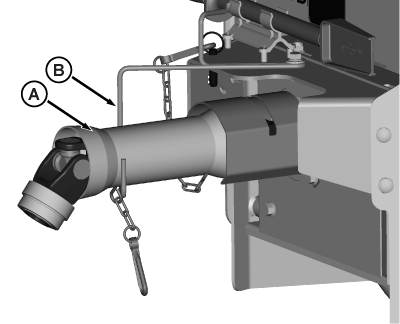

  3. MXT014413
    MXT014413-UN-15MAY15

    Install drive shaft (A) on support rod (B).


  4. Lower front hitch.

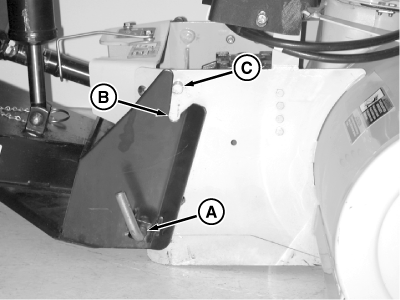

  5. MXT013815
    MXT013815-UN-24MAR15

    Picture Note: Locking pin lever (A) on each side of front hitch bracket must be in the unlocked position shown.

    Move machine forward slowly until slot (B) on front hitch bracket lines up with pin (C) on attachment.

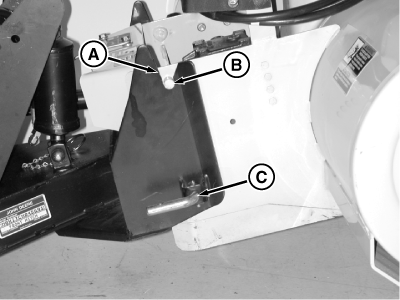

  6. MXT013816
    MXT013816-UN-24MAR15

    Raise front hitch until slot (A) locks in place under pin (B) and locking pins (C) click into hitch bracket.


  7. Lower attachment to ground.

  8. Install hose locking ring to right side of front hitch.

    • Locking ring can remain installed when attachment is removed.
