Assembly

1.
   MXT013800-UN-24MAR15

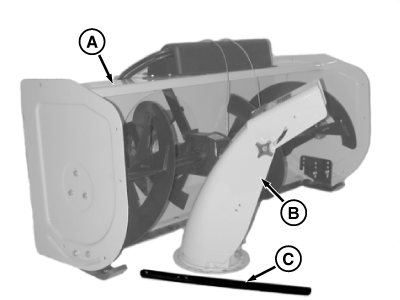

   A - Hydraulic Hose Assembly

   B - Discharge Chute

   C - Drift Blade

   Remove attachment and hydraulic hose assembly (A), discharge chute (B), drift blade (C), and bag of parts.

   Quantity	Description
   3	Large Clip
   6	Self-Tapping Screw, M8x20
   1	Tie Strap
   1	Locking Pin With Chain
   1	Spring Locking Pin
   2	Cap Screw, M6 x 25
   2	Locknut, M6

---




2. See your front hitch kit installation instructions for assembling the following hardware:

   1. Large spring locking pin (Used with front hitch kit).

   2. Tether assembly (Used with front hitch kit).

   The above parts are used to restrict hitch from angling with attachment.

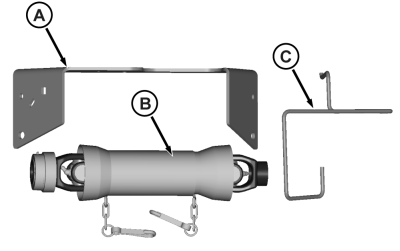

3. Identify drive assembly parts:


   MXT014146-UN-22MAY15

   A - Upstop

   B - Drive Shaft

   C - Drive Shaft Support Rod

   Parts in Box

   Quantity	Description
   1	Upstop (A)
   1	Drive Shaft (B)
   1	Drive Shaft Support Rod (C)
   1	Bag of Parts

   Parts in Bag

   Quantity	Description
   4	Carriage Bolt, M8 x 20
   5	Nut, M8
   1	Rolled Pin
   1	Woodruff Key
   1	Wire, Plastic Coated Retaining
   2	Cap Screw, M8 x 25
   1	Locknut, M8
   1	Washer
   1	Hose Locking Ring

---
