Lubricating Auger Shaft and Drive Shaft

1.

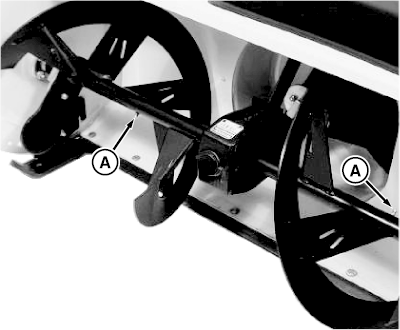

   MXT013808-UN-24MAR15

   Lubricate grease fittings (A) with John Deere Moly High Temperature EP Grease or equivalent.

---




2.

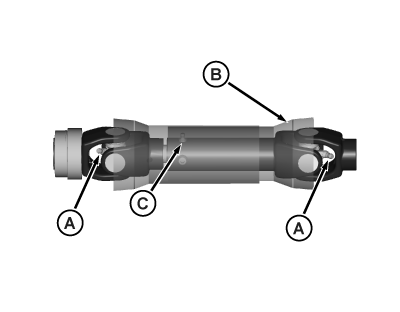

   MXT014145-UN-05AUG15

   Lubricate U-joint grease fittings (A) with John Deere Moly High Temperature EP Grease or equivalent.

---




3. Extend drive shaft ends.

4. Rotate inner guard (B) until hole reveals drive shaft grease fitting (C).

5. Lubricate grease fitting with John Deere Moly High Temperature EP Grease or equivalent.

6. Extend and retract drive shaft several times to distribute grease along drive shaft. Add grease as necessary.
