Drive System Maintenance

MXT023433-UN-17AUG18

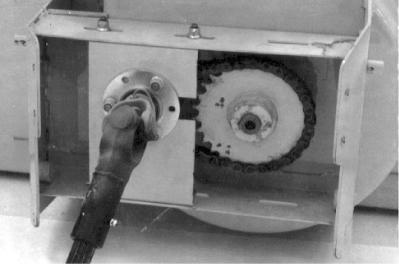

Photo A — Exposed Drive Chain
If your snow blower has an exposed drive chain as shown in
Photo A, follow the instructions titled “Adjusting and Lubricating
Drive Chain” located in this section of the manual.

MXT023434-UN-17AUG18

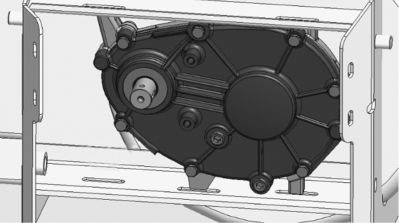

Photo B — Enclosed Drive Chain
If your snow blower has an enclosed drive chain as shown
in Photo B, follow the instructions titled “Checking Oil in Enclosed
Chain Housing” located in this section of the manual.
|
|
SB31882,0000298-19-20180829
|
|
