Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.
   MXAL46339-UN-05APR13

   Picture Note: X500, X530, and X534


   MXT011508-UN-23JUN14

   Picture Note: X590

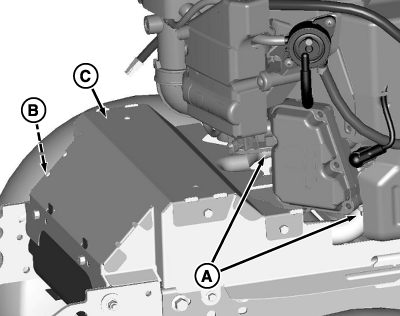

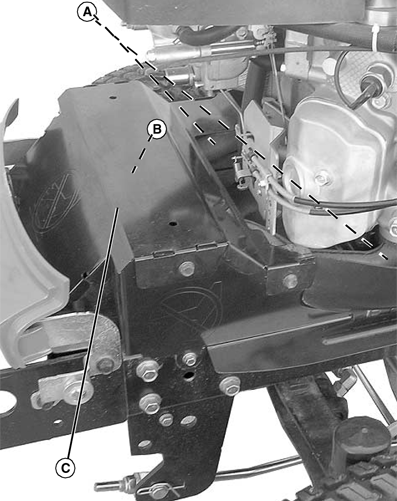

   Exhaust manifold (A), muffler pipe (B), muffler and muffler shield (C).

---




2. Inspect area around spark plugs on all models and clean out debris.


   MXT012544-UN-31OCT14

   Picture Note: X500, X530, and X534


   MXT011509-UN-31OCT14

   Picture Note: X590

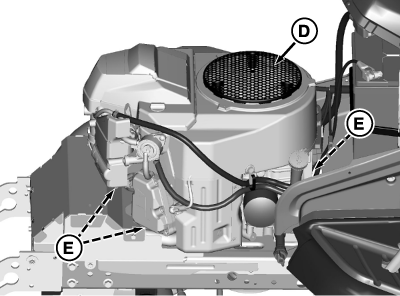

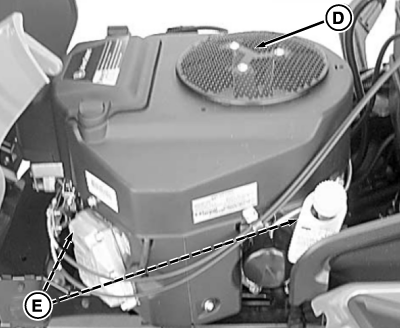

   Engine intake screen (D) and cooling fins (E).

---




3.
   MXT012543-UN-31OCT14

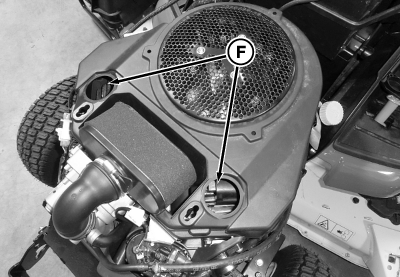

   X590: Remove air cleaner cover and remove debris through clean-out ports (F).

---




4.
   MXAL46342-UN-05APR13

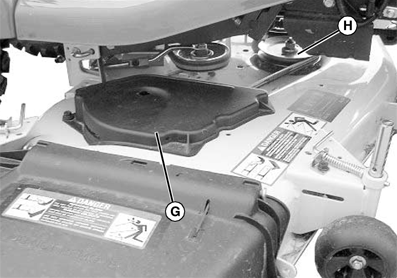

   Top of mower deck, under shields (G), including spindle (H) and belt areas.

---




5.
   MXAL46343-UN-05APR13

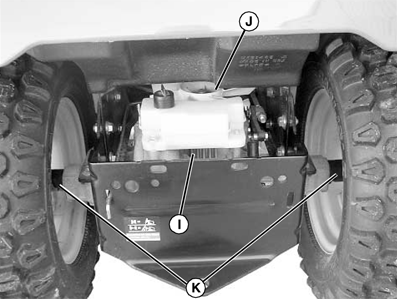

   On or near transmission (I), transmission fan (J), and driveline (K).

---




6.
   MXAL46344-UN-05APR13

   Picture Note: X500, X530, and X534


   MXT011510-UN-23JUN14

   Picture Note: X590

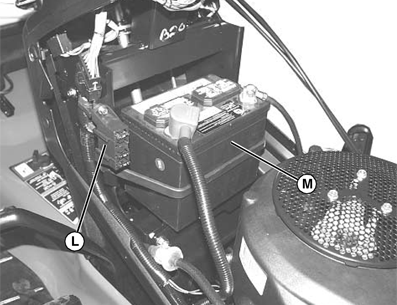

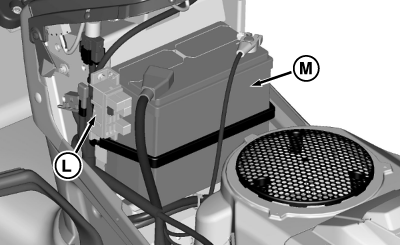

   On right side near fuse block (L), and all wiring, including the battery (M) and related wiring harnesses.

---
