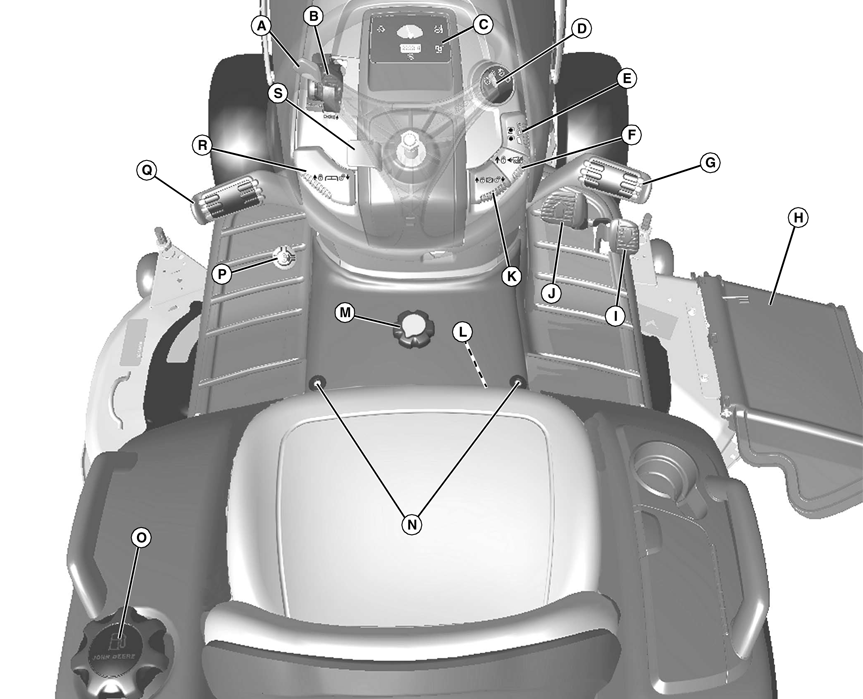

Operator Station Controls (X500, X530, X534)

MXAL46345-UN-05APR13

A - Throttle Lever
B - Choke Lever
C - Instrument Panel
D - Key Switch
E - Mower/PTO Engagement/RIO Lever
F - Cruise Control Lever
G - Brake Pedal
H - Mower Deflector
I - Reverse Travel Pedal
J - Forward Travel Pedal
K - Park Brake Lever
L - Seat Adjustment Lever
M - Mower Cutting Height Knob
N - Mower Level Adjustment Ports
O - Fuel Tank Cap
P - Traction Assist Pedal
Q - Mower Lift Pedal (X500)
R - Mower Lift Lock Lever (X500); Hydraulic Mower Lift Lever (X530, X534)
S - Tilt Steering Lever (X534)
