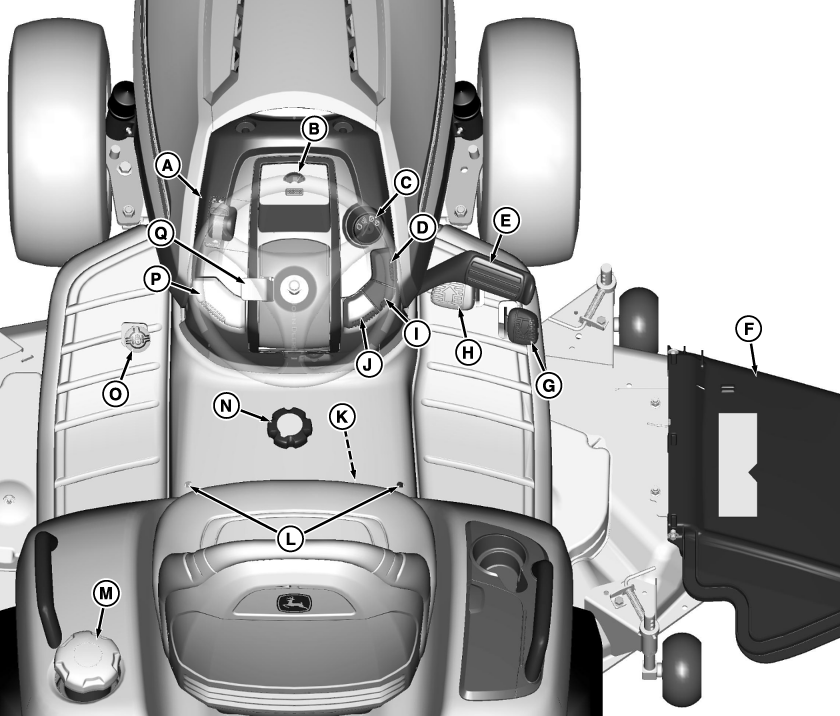

Operator Station Controls (X590)

MXT011511-UN-23JUN14

A - Throttle Lever
B - Instrument Panel
C - Key Switch
D - Mower/PTO Engagement/RIO Lever
E - Brake Pedal
F - Mower Deflector
G - Reverse Travel Pedal
H - Forward Travel Pedal
I - Cruise Control Lever
J - Park Brake Lever
K - Seat Adjustment Lever
L - Mower Level Adjustment Ports
M - Fuel Tank Cap
N - Mower Cutting Height Knob
O - Traction Assist Pedal
P - Hydraulic Mower Lift Lever
Q - Tilt Steering Lever
