Replacing Fuses (X590)

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Lift hood.

3.

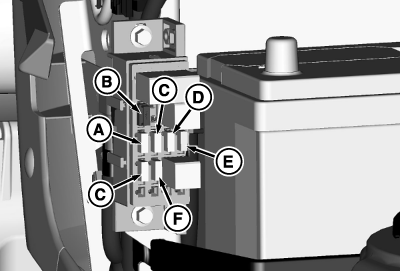

   MXT011513-UN-25JUN14

   A - 15 amp

   B - Diode

   C - 10 amp

   D - 20 amp

   E - 7.5 amp

   F - 2 amp

   Pull blown fuse out of socket.
   • Fuse identification:



   Position	Circuit
   A	Main Circuit
   C	12 Volt Power Port (Optional)
   D	Starter Circuit
   E	PTO Circuit
   F	Fuel Injection

---




4. Check metal strip in fuse window and discard fuse or fuses if strip is broken.

5. Push new fuse into correct socket.

6. Lower hood.
