Lubricating Steering Cylinder Ball Joints (X530, X534, X590)

MXAL46380-UN-05APR13

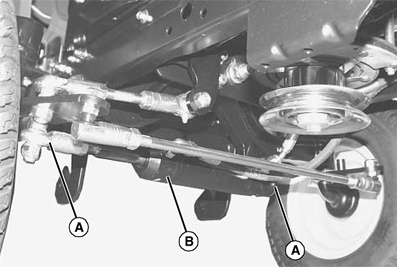

Picture Note: X534 model shown.

1. Lubricate two grease fittings (A) on ends of steering cylinder (B) with one or two pumps of general all-purpose grease.

2. Turn steering wheel back and forth to distribute grease.
