Using Tire Chains (X534)

It is recommended to use ballast on the machine to increase traction. However, if chains are desired for winter use, the following procedure must be performed prior to operation with chains:

  1. Remove rear wheels. See “Removing and Installing Wheel Assembly” in the SERVICE MISCELLANEOUS section.

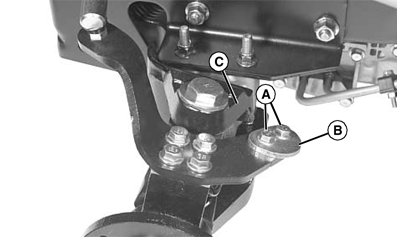

  2. MXAL46373
    MXAL46373-UN-05APR13

    Right side shown, steering stop in “normal” position.

    Remove and retain two M8x30 cap screws (A) and M8 locknuts securing adjustable steering stop (B).


  3. Flip steering stop to the “chain” position, with the larger lobe pointed toward the rear axle support casting (C), and secure with M8 hardware, removed earlier. Tighten hardware securely.

This will stop the rotation of the spindle early, preventing chain contact with the frame and other critical components.

When the chains are removed, the stops should be reversed to the “normal” position to allow for full tire rotation and maximum turning performance. Turf operation with the stops in the “chain” position will result in less turning performance and slight scuffing due to imperfect turn geometry.
