Lubricating Pivot Points

42 Mower:

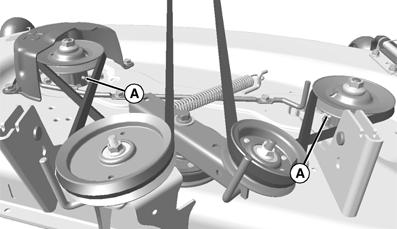

MXAL45854-UN-10APR13

42C mower shown.

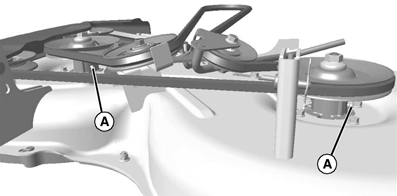

MXAL45855-UN-10APR13

42 mulching mower shown.

• Lubricate two mower spindle grease fittings (A) with two pumps of grease at specified interval.

48 and 54 Mowers:

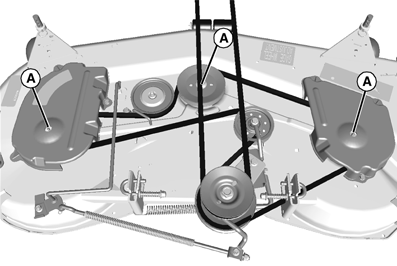

MXAL45996-UN-09APR13

54 mower shown.

• Lubricate three mower spindle grease fittings (A) with two pumps of grease at specified interval.
