Install Mower Anti-Scalp Wheels

1. Install anti-scalp wheels:

   42 in. Mower

   • NOTE: Anti-scalp wheels on 42 in. mowers are not installed in correct hole position for operation.



     MXAL45923-UN-10APR13

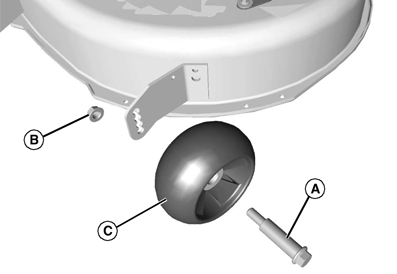

     Remove shoulder bolt (A) and nut (B). Move wheel (C) to proper hole position. Secure with shoulder bolt and nut. Tighten nut to specification.

     Item	Measurement	Specification
     Anti-Scalp Wheel Shoulder Bolt and Nut	Torque	34 N·m (25 lb.-ft.)

   ---




   48 in. and 54 in. Two Belt Drive Mowers

   • NOTE: Anti-scalp wheels on 48 in. and 54 in. mowers are located upside down on mower deck for shipping.



     MXAL46078-UN-09APR13

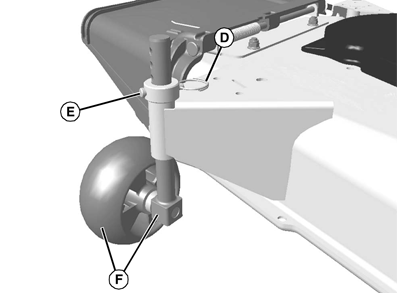

     Remove locking clip (D), pull pin (E) outward and remove wheel and shaft (F) installed upside down on mower deck. Install from the bottom of deck to proper hole position, as shown. Install pin and locking clip to lock wheel in position.

   ---




---




2. Adjust mower level before operation.
