Lubricating Steering Cylinder Ball Joints (X310)

MXAL46000-UN-09APR13

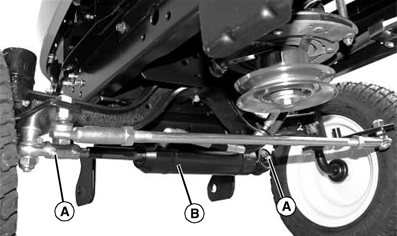

1. Lubricate two grease fittings (A) on ends of steering cylinder (B) with one or two pumps of general all-purpose grease.

2. Turn steering wheel back and forth to distribute grease.
