Operator Station Controls

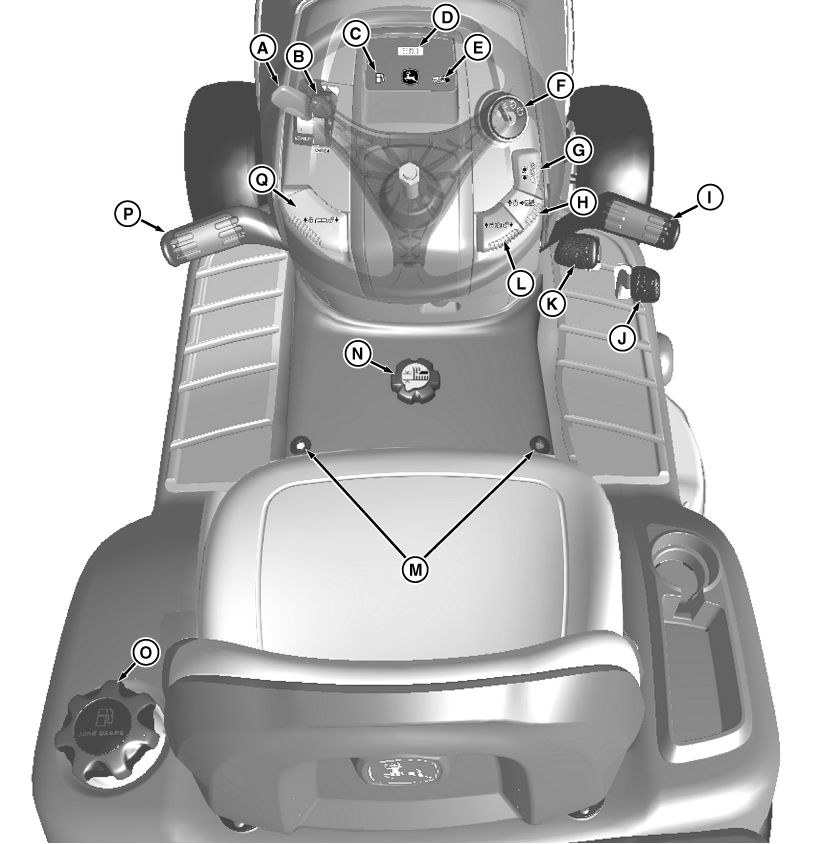

MXT005391-UN-19AUG13

A - Throttle Lever

B - Choke Lever

C - Low Fuel Light (X300R-X305R)

D - Hour Meter

E - Dash Light, Hopper Fill

F - Key Switch

G - Mower/PTO Engagement Lever

H - Cruise Control Lever

I - Brake Pedal

J - Reverse Travel Pedal

K - Forward Travel Pedal

L - Park Brake Lever

M - Mower Level Adjustment Ports

N - Mower Cutting Hieght Knob

O - Fuel Tank Cap

P - Mower Lift Pedal

Q - Mower Lift Lock Lever
