Using Grass Collector

1. Push down mower engagement lever to stop mower blades.

2. CAUTION: Do not attempt to unplug attachment with machine running.

   • Rotating blades are dangerous. Shut off the engine and remove the key before getting off the seat to inspect the machine and attachment.
   • Thrown objects can cause serious injury. Make sure all machine parts are stopped before raising hopper top or removing chutes.



   NOTE: Mower engagement operation will stop if the grass collector is full. Do not engage mower until grass collector has been emptied.

   Drive to dumping location, stop tractor and lock the park brake.

3.
   MXAL47193-UN-16APR13

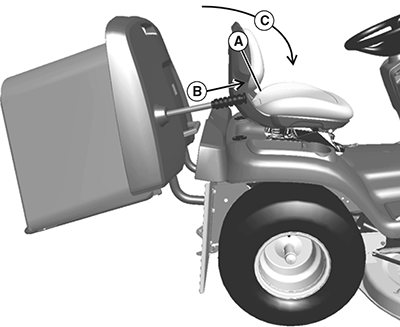

   Pull handle (A) upward (B) and then forward and down (C) to open grass collector.

---




4. Drive forward away from grass pile to empty grass clippings.

5. Push rearward on handle until collector locks in the closed position. Push down on handle to place in lowered position.
