Removing Mower

  1. Park machine safely. (See Parking Safely in the SAFETY section).

  2. Allow engine and muffler to cool completely.

  3. CAUTION: Rotating blades are dangerous. Before adjusting or servicing mower:

    • Disconnect spark plug wire(s) or battery negative (-) cable to prevent engine from starting accidentally.
    • Always wear gloves when handling mower blades or working near blades.

    MXAL47212
    MXAL47212-UN-19AUG13

    Adjust mower cutting height to deck removal position (lowest position) (A).


  4. CAUTION: Lift pedal is spring-assisted and may have unexpected movement.

    Lock lift pedal when installing or removing mower deck.

    NOTE: Because a lift assist may be installed on your machine, you will need to lower deck and then pull lift pedal back by hand to lock the lift lever.

    Lower mower deck, pull back lift pedal by hand, and pull lift lever up to lock.

  5. CAUTION: Component is spring-assisted and under tension. Injury can occur if spring-assisted component is released suddenly.

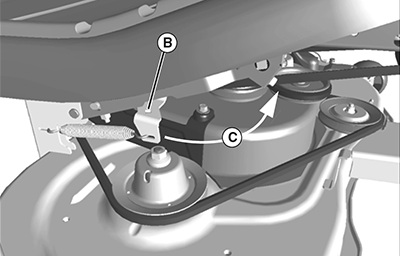

    MXAL47213
    MXAL47213-UN-16APR13

    Lever on right side.

    Using a 3/8 in. ratchet, rotate and hold tension arm (B), under right side of fender deck, counterclockwise (C), while removing mower belt from engine sheave.

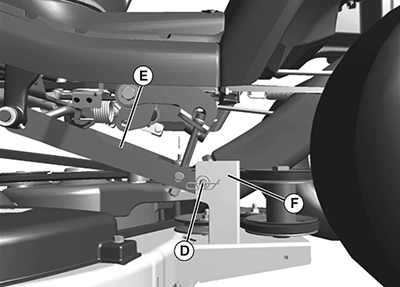

  6. MXAL47214
    MXAL47214-UN-16APR13

    Remove spring locking clip and pin (D), and move rear draft arm (E) away from deck bracket (F). Raise deck slightly with deck handle to remove pressure on pin when pulling out. Repeat on other side.

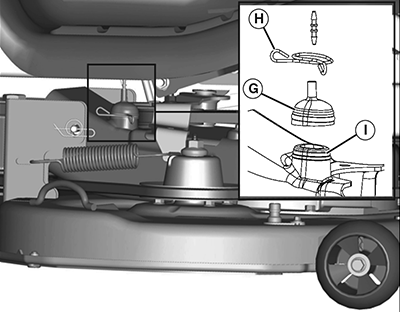

  7. MXAL47215
    MXAL47215-UN-16APR13

    Clean area around rubber boot (G) under right side of machine fender deck.


  8. Remove clamp (H) and rubber boot from raised opening (I) of blower adapter housing.

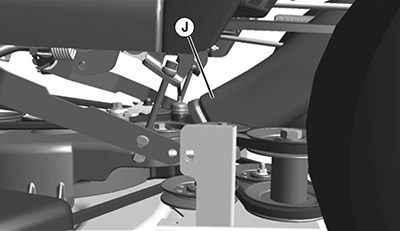

  9. MXAL47216
    MXAL47216-UN-16APR13

    Remove grass collector from rear of machine. Move chute (J) rearward to disconnect from blower adapter.

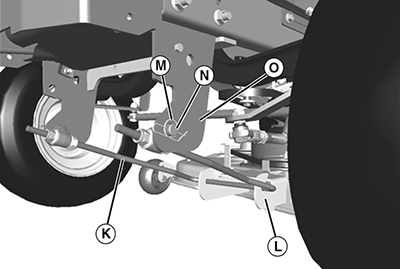

  10. MXAL47217
    MXAL47217-UN-16APR13

    Remove front draft rod (K) from mower bracket (L).


  11. When operating the machine without the mower deck:

    • Remove locking clip (M) from stud (N) on each side, and remove front draft rod from draft bracket (O). Note orientation of stud offset when removing; correct offset is above rod.

  12. Raise draft arms to transport position.

  13. Slide mower out from under the machine.
