Installing Grass Collector

CAUTION: Rotating blades are dangerous. Blades may throw debris through raised chute. Park machine safely before opening grass collector.

1. Park machine safely. (See Parking Safely in the Safety section).

2.
   MXAL47231-UN-16APR13


   MXAL47232-UN-16APR13


   MXAL47233-UN-16APR13

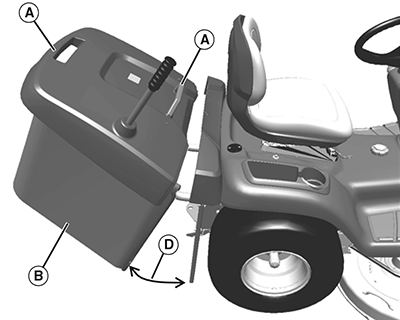

   Use two handles (A) to raise hopper assembly (B) onto back portion (C) of support arms, and leave hopper assembly open at an approximate 20° angle (D).

---




3. IMPORTANT: Make sure arrows are aligned before closing hopper assembly. Damage could occur to machine and/or hopper if arrows are not aligned.

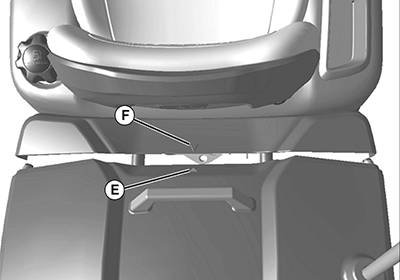

   With hopper still at an approximate 20° angle, inspect that the center arrow (E) on the hopper aligns to the center arrow (F) on the machine. Move hopper, as necessary, to align the arrows.

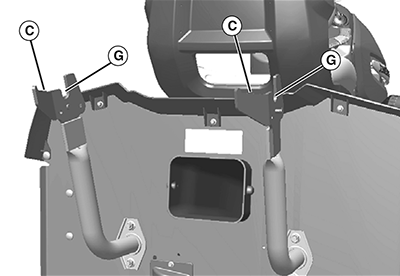

4. Push the hopper forward, causing it to fall into the pivot (G) on the support arms. Check again to be sure arrows align, and then close hopper assembly.
